plot_record_status() creates a ggplot heat map from data returned by build_record_status_data(). The plot is designed to resemble the REDCap Record Status Dashboard while remaining a standard ggplot object that users can extend with additional ggplot2 layers.

Usage

plot_record_status(
  data,
  record_id_field = NULL,
  mode = c("standard", "compact"),
  low_color = "#D73027",
  mid_color = "#FEE08B",
  high_color = "#1A9850",
  missing_color = "grey95",
  tile_color = "white",
  tile_linewidth = NULL,
  x_label = "REDCap Form",
  y_label = "Record ID",
  fill_label = "Completion Status",
  rotate_x_text = TRUE,
  x_text_size = NULL,
  y_text_size = NULL,
  x_tick_every = NULL,
  y_tick_every = NULL,
  show_y_title = NULL,
  form_label_max = NULL
)

Arguments

data

A dataframe returned by build_record_status_data().

record_id_field

Optional string naming the record ID column. By default, the function infers the only column other than form_name, event_name, and pct_complete.

mode

Plot display mode. Use "standard" for the default dashboard view or "compact" for smaller x-axis text, thinner tile borders, and truncated long form labels. Compact mode preserves the default y-axis labels and title unless those are overridden directly.

low_color

Color for pct_complete = 0.

mid_color

Color for pct_complete = 0.5.

high_color

Color for pct_complete = 1.

missing_color

Fill color for missing pct_complete values.

tile_color

Border color for each dashboard tile.

tile_linewidth

Border width for each dashboard tile. When NULL, the value is chosen from mode.

x_label

X-axis label.

y_label

Y-axis label.

fill_label

Fill legend label.

rotate_x_text

Whether to rotate form labels on the top axis.

x_text_size, y_text_size

Optional axis text sizes.

x_tick_every, y_tick_every

Optional positive integers for showing every nth x- or y-axis tick label. When NULL, the axis is not thinned. These arguments work in both standard and compact modes.

show_y_title

Whether to show the y-axis title.

form_label_max

Optional positive integer for truncating long form labels. When NULL, compact mode truncates labels to 35 characters and standard mode leaves labels unchanged.

Value

A ggplot object.

Details

The function expects one row per dashboard tile with a form_name column and a pct_complete column. The record ID column is inferred from the remaining data columns when possible. For longitudinal output, event_name is ignored because event labels are already included in form_name.

pct_complete should range from 0 to 1, where 1 is complete and 0 is incomplete or unverified. Missing values are shown with missing_color.

Examples

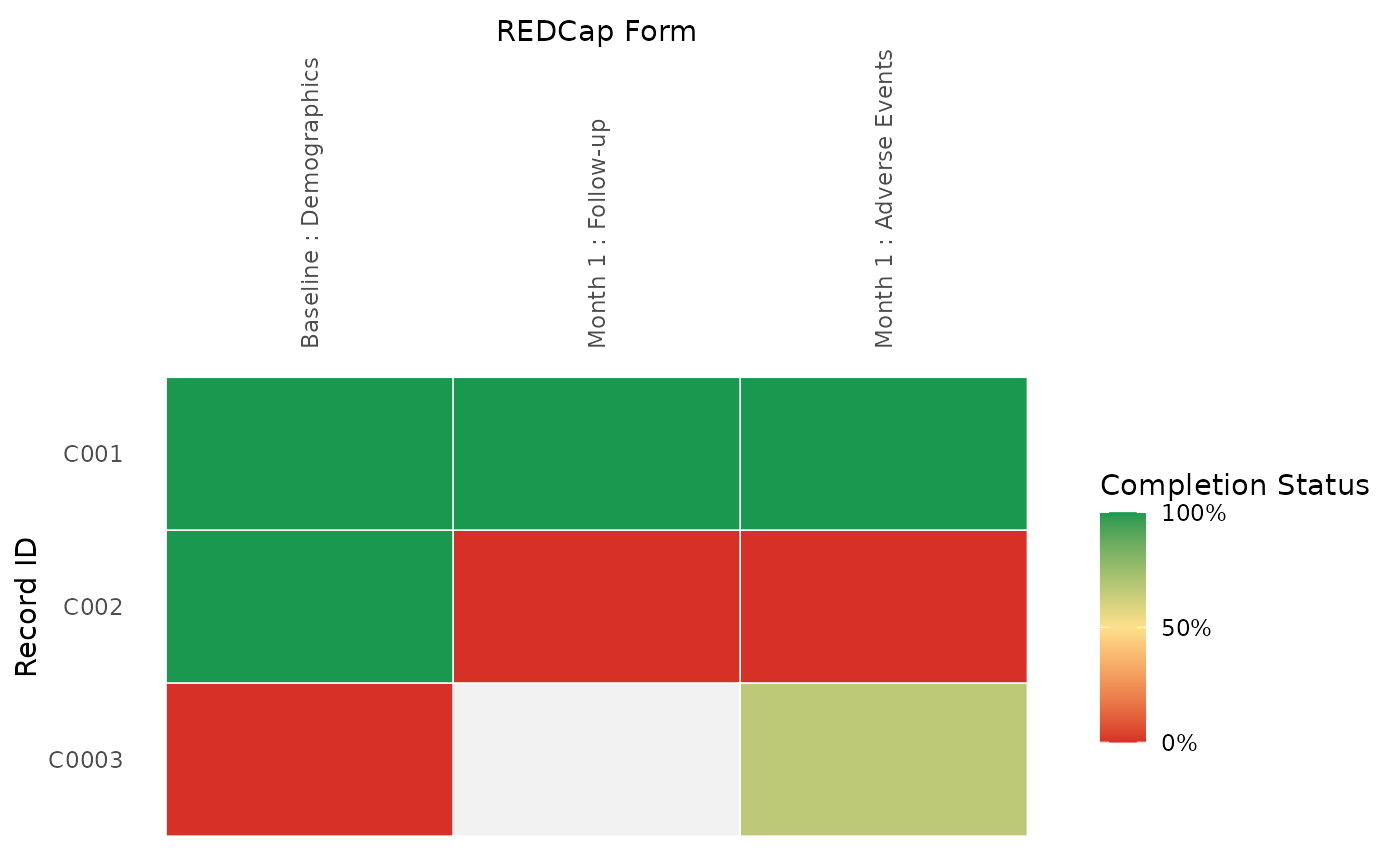

plot_record_status(mock_record_status_data)

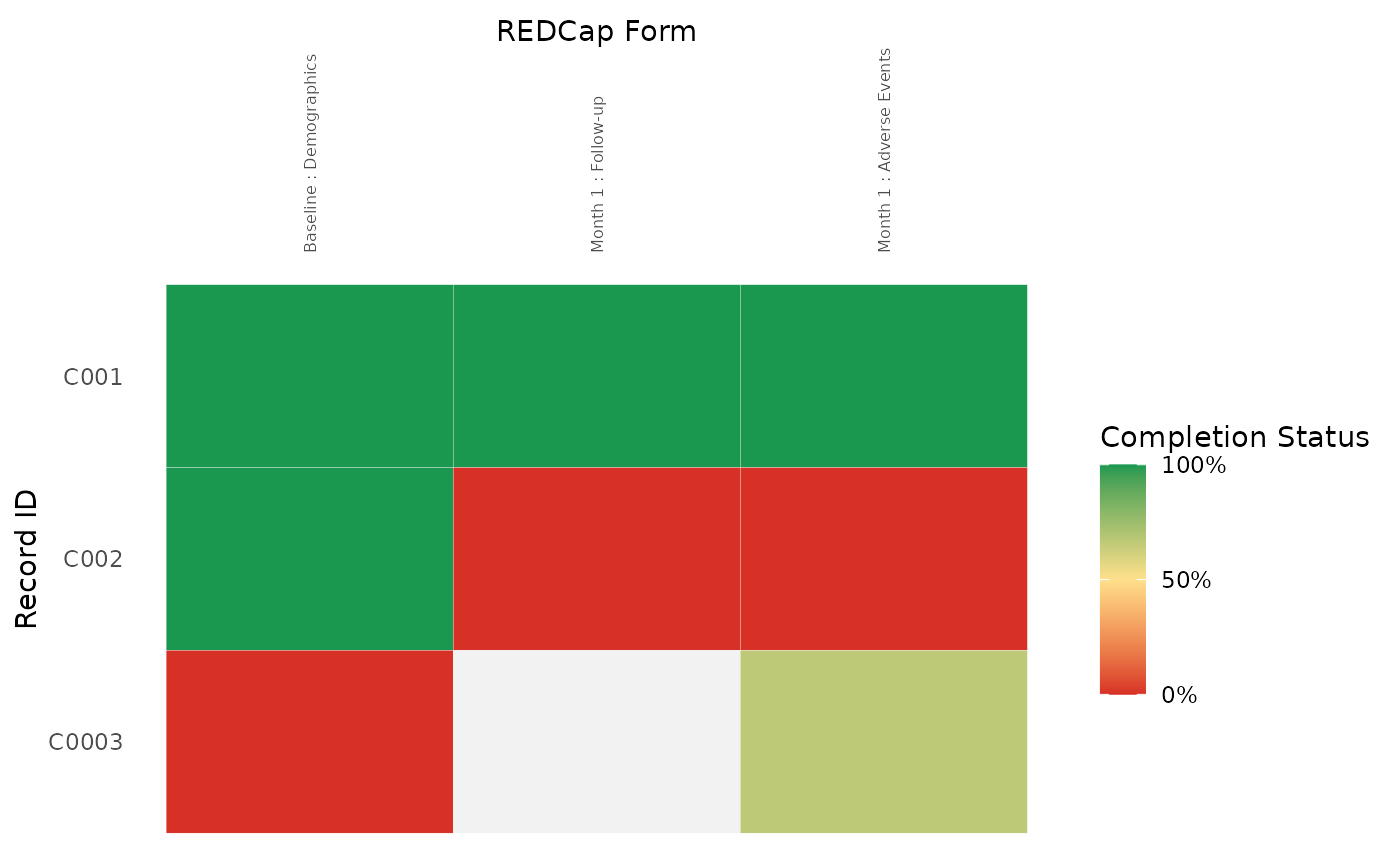

plot_record_status(mock_record_status_data, mode = "compact")


if (FALSE) { # \dontrun{
data <- build_record_status_data(
  redcap_uri = Sys.getenv("REDCAP_URI"),
  token = Sys.getenv("REDCAP_TOKEN")
)

plot_record_status(data)
} # }
