ggswim

Swimmer plots with ggplot2.

ggswim extends ggplot2 with lanes, event markers, and continuation arrows for visualizing timelines. Build and customize your plot with familiar layers, scales, and themes.

• Show changes over time along each lane.
• Give events their own symbols, colours, and legend.
• Add arrows to indicate ongoing activity or follow-up.

Example: following patients through a clinical trial

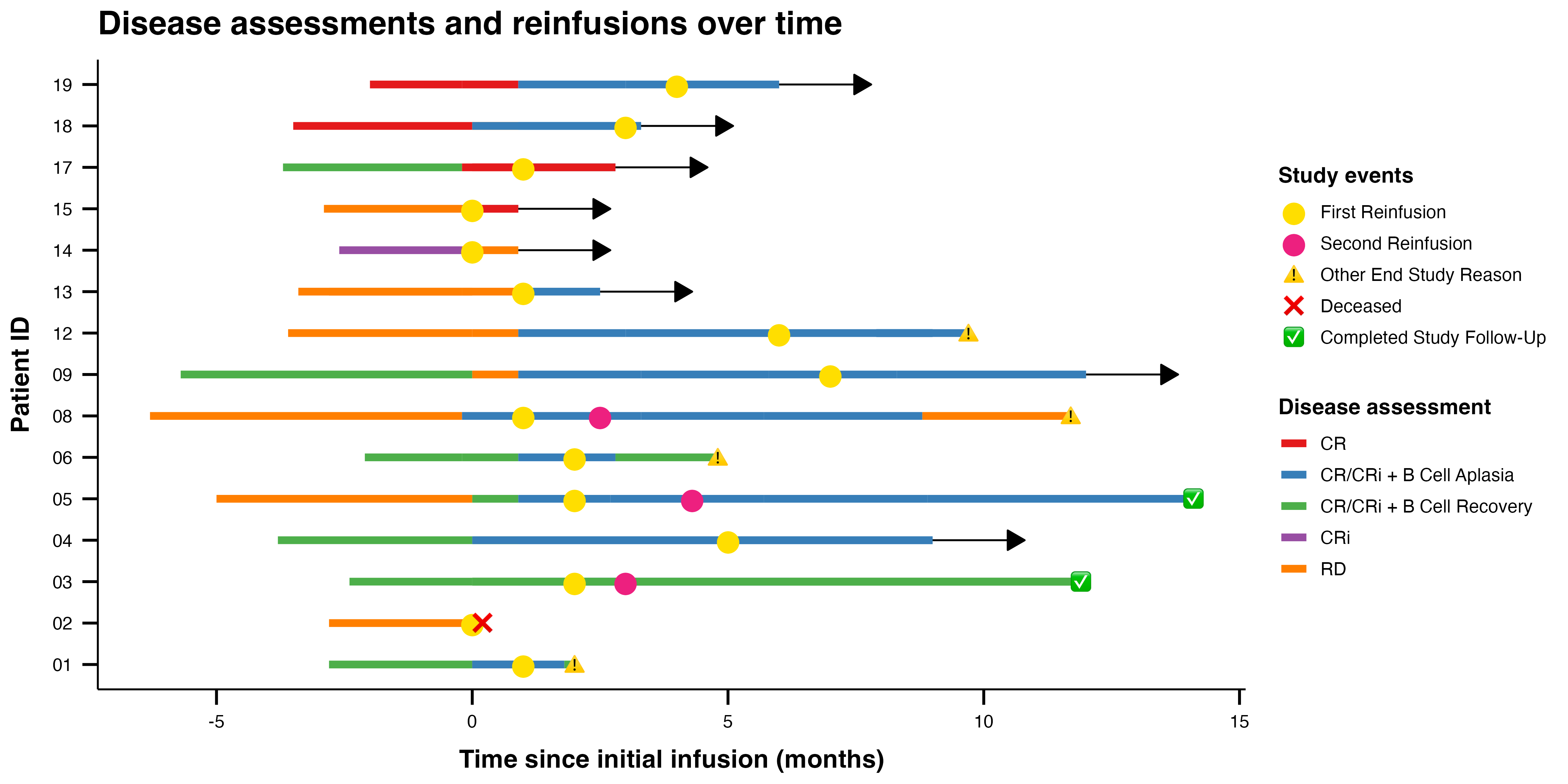

Clinical trials are one application of swimmer plots. This example uses the package’s demonstration data to show disease assessments, reinfusions, and study outcomes. Each lane represents a patient; arrows indicate ongoing follow-up.

Installation

Install the development version from GitHub:

# install.packages("devtools")
devtools::install_github("CHOP-CGTInformatics/ggswim")

Make this plot

Prepare the included datasets, then combine lanes, arrows, and markers in a single ggplot. Each layer can use its own data while sharing the same axes. Expand the setup block and run it before the plot code; it creates all_events and arrow_data, which the plot needs.

Click to expand: load packages and prepare the example data

library(ggswim)
library(ggplot2)

all_events <- dplyr::bind_rows(infusion_events, end_study_events)

# Add arrows only for patients without an end-of-study event.
arrow_data <- patient_data |>
  dplyr::left_join(
    dplyr::select(end_study_events, pt_id, label),
    by = "pt_id"
  ) |>
  dplyr::select(pt_id, end_time, label) |>
  dplyr::filter(.by = pt_id, end_time == max(end_time)) |>
  dplyr::filter(is.na(label)) |>
  dplyr::distinct()

ggplot() +
  geom_swim_lane(
    data = patient_data,
    aes(x = start_time, xend = end_time, y = pt_id,
        colour = disease_assessment)
  ) +
  geom_swim_arrow(
    data = arrow_data,
    aes(xend = end_time, y = pt_id),
    arrow_head_length = grid::unit(0.15, "inches")
  ) +
  geom_swim_marker(
    data = all_events,
    aes(x = time_from_initial_infusion, y = pt_id, marker = label),
    size = 4
  ) +
  scale_colour_brewer(name = "Disease assessment", palette = "Set1") +
  scale_marker_discrete(
    # Match styles to event categories in the order given by limits.
    glyphs = c("⬤", "⬤", "⚠️", "❌", "✅"),
    colours = c("#ffde00", "#ed207f", NA, NA, NA),
    limits = c("First Reinfusion", "Second Reinfusion",
               "Other End Study Reason", "Deceased",
               "Completed Study Follow-Up"),
    name = "Study events"
  ) +
  labs(
    title = "Disease assessments and reinfusions over time",
    x = "Time since initial infusion (months)", y = "Patient ID"
  ) +
  theme_ggswim()

Explore more

• Getting started: build a swimmer plot step by step.
• Adding arrows: control continuation indicators and arrow legends.
• Gallery: explore custom glyphs, icons, and themes.

Contributing

Issues and pull requests are welcome. By participating, you agree to follow our Code of Conduct.
